Integrating IP Cameras with Agora Real-Time Engagement (RTE) / Real-Time Communication (RTC) Channels

Updated

Overview

Integrating IP cameras into Agora channels allows real-time broadcasting of camera feeds for live streaming, surveillance, or interactive communication. The workflow involves converting RTSP streams from IP cameras to a compatible format and sending them to Agora's Media Gateway for ingestion into an RTC channel.

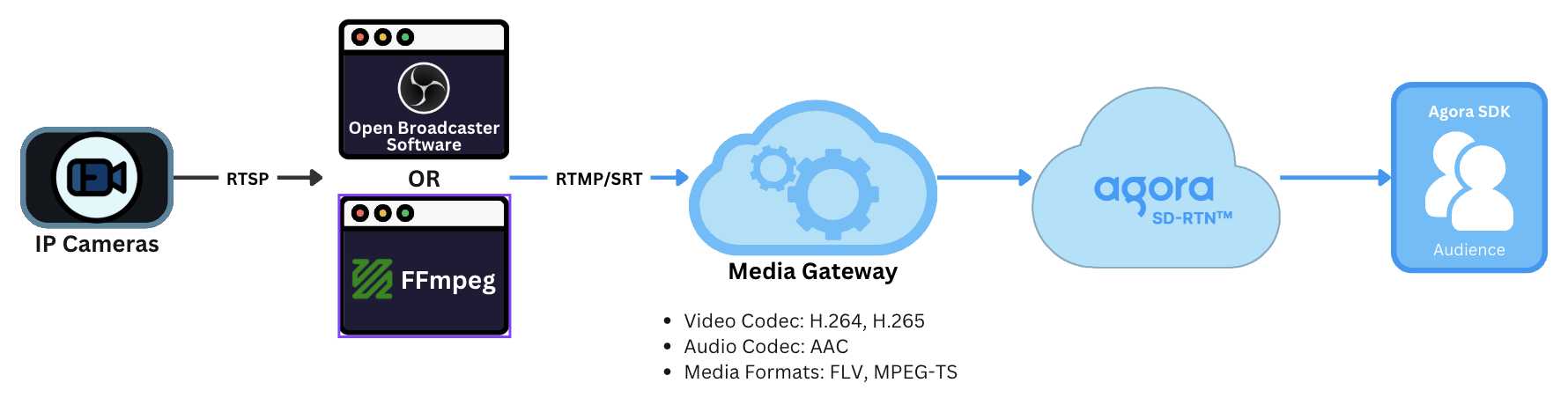

Components and Workflow

1. RTSP Stream (IP Camera Output)

  • RTSP (Real-Time Streaming Protocol): Standard protocol used by IP cameras for streaming video and audio.
  • Configuration Requirements:
    • Obtain the RTSP URL from the IP camera. Below is the example format.
      • rtsp://<username>:<password>@<camera-ip>:<port>/<path>
      • rtsp://<username>:<password>@<camera-ip>:<port>
    • Ensure the camera supports protocols and codecs compatible with FFmpeg and Agora, such as H.264/H.265 for video and AAC for audio.

2.1 OBS (Open Broadcaster Software)

  • Role: OBS provides a user-friendly interface to manage, enhance, and broadcast IP camera feeds. It can accept streams from FFmpeg or directly from RTSP.
  • Steps to Configure OBS:

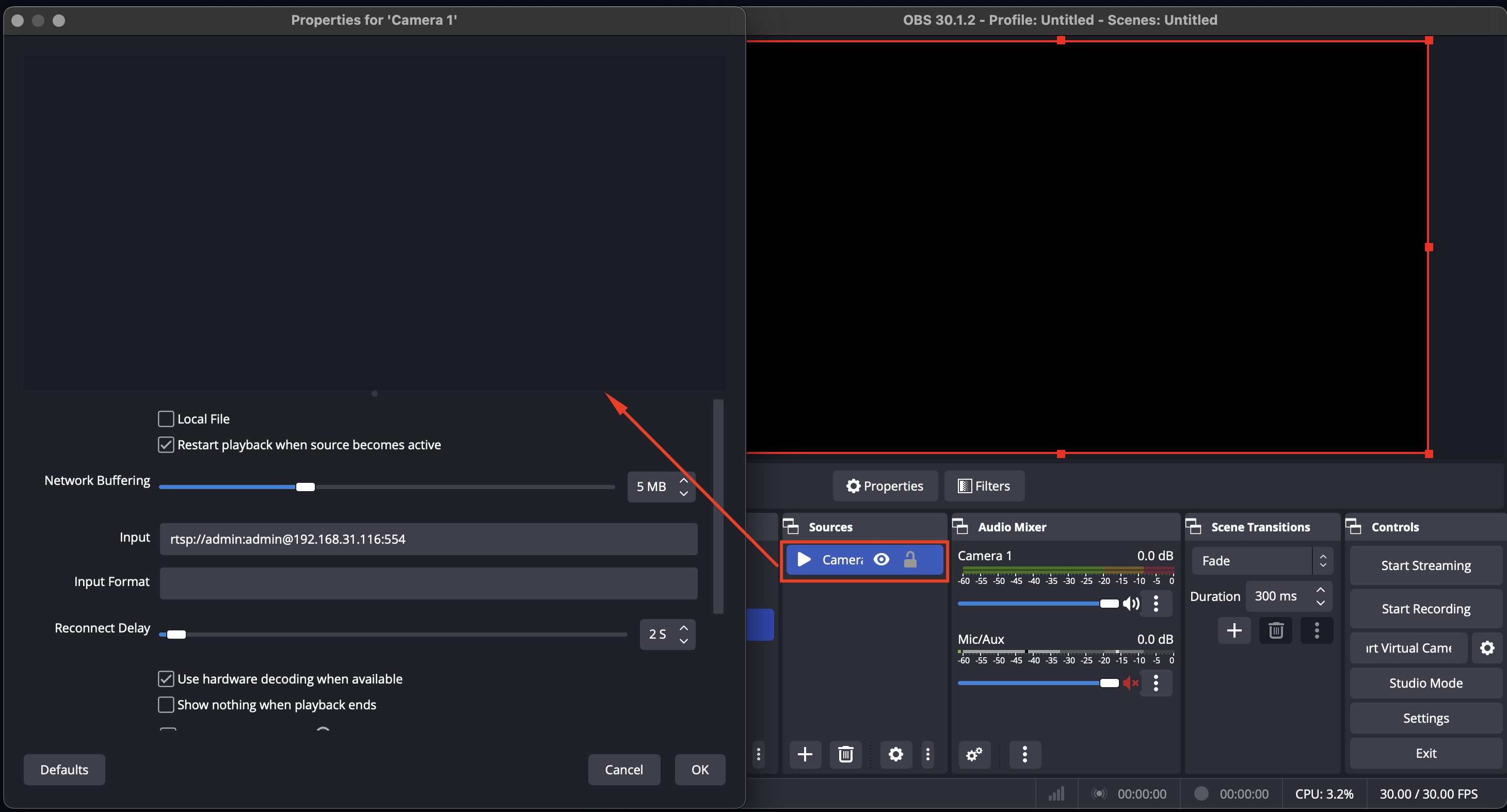

    1. Add the Camera Feed:
      • Go to Sources, click the "+" button, and select Media Source.
      • Paste the RTSP URL of the IP camera.
    2. Adjust Stream Settings:
      • Follow Media Gateway quick start guide.
      • Navigate to Settings > Stream and configure the streaming server (e.g., RTMP endpoint of Agora Media Gateway).
      • Example: rtmp://<agora-ingest-url>/<stream-key>.
    3. Start Streaming:
      • Click Start Streaming to begin broadcasting the feed to Agora.

2.2 FFmpeg (Instead of FFmpeg will add OBS or other Live Production Tool)

  • Role: FFmpeg processes the RTSP stream and transcodes it into a format that the Agora Media Gateway accepts.
  • Key Features Used:
    • Transcoding for compatibility.
    • Stream publishing using RTMP or other supported protocols.
  • Example Command (Bash):
    ffmpeg -re -i "rtsp://<username>:<password>@<camera-ip>:<port>/<path>" -c:v libx264 -preset veryfast -b:v 3000k -maxrate 3000k -bufsize 6000k -c:a aac -b:a 160k -f flv "rtmp://<agora-ingest-url>/<stream-key>"
  • Replace <username>, <password>, <camera-ip>, <port>, <path>, <agora-ingest-url>, and <stream-key> with appropriate values.

3. Agora Media Gateway

  • Usage:
    • Ingests external media streams into an Agora RTC channel.
  • Stream Key:
    • Definition: A unique key used to identify and authenticate the external stream.
    • Obtaining the Stream Key:
      1. Navigate to the Media Gateway guide section.
      2. Generate a stream key locally or with Rest API.
  • Channel Mapping:
    • Each stream key is tied to a specific Agora RTC channel.
    • Users in the channel can view the external stream as a audience.

4. Agora RTC Channel

  • Audience: The audience user can subscribe to the remote audio and video streams from IP Camera in real-time.

Troubleshooting and Tips

  • Common Issues:

    • Buffering or Latency: Adjust -bufsize and -preset options in FFmpeg for better performance.
    • OBS Configuration Issues: Double-check the RTMP server URL and Stream Key.
    • Codec Incompatibility: Verify the codecs (e.g., H.264, AAC) used by the IP camera.

  • Best Practices:

    • Use a stable network connection for both the IP camera and the FFmpeg/OBS host.
    • Regularly test components for compatibility.
    • For you can enable logging in FFmpeg for detailed diagnostics:
      bash command
      ffmpeg -loglevel debug ...

  • Testing:

    • Test individual components (RTSP, FFmpeg, OBS) before full integration.
